Vedeliksoojusvahetid

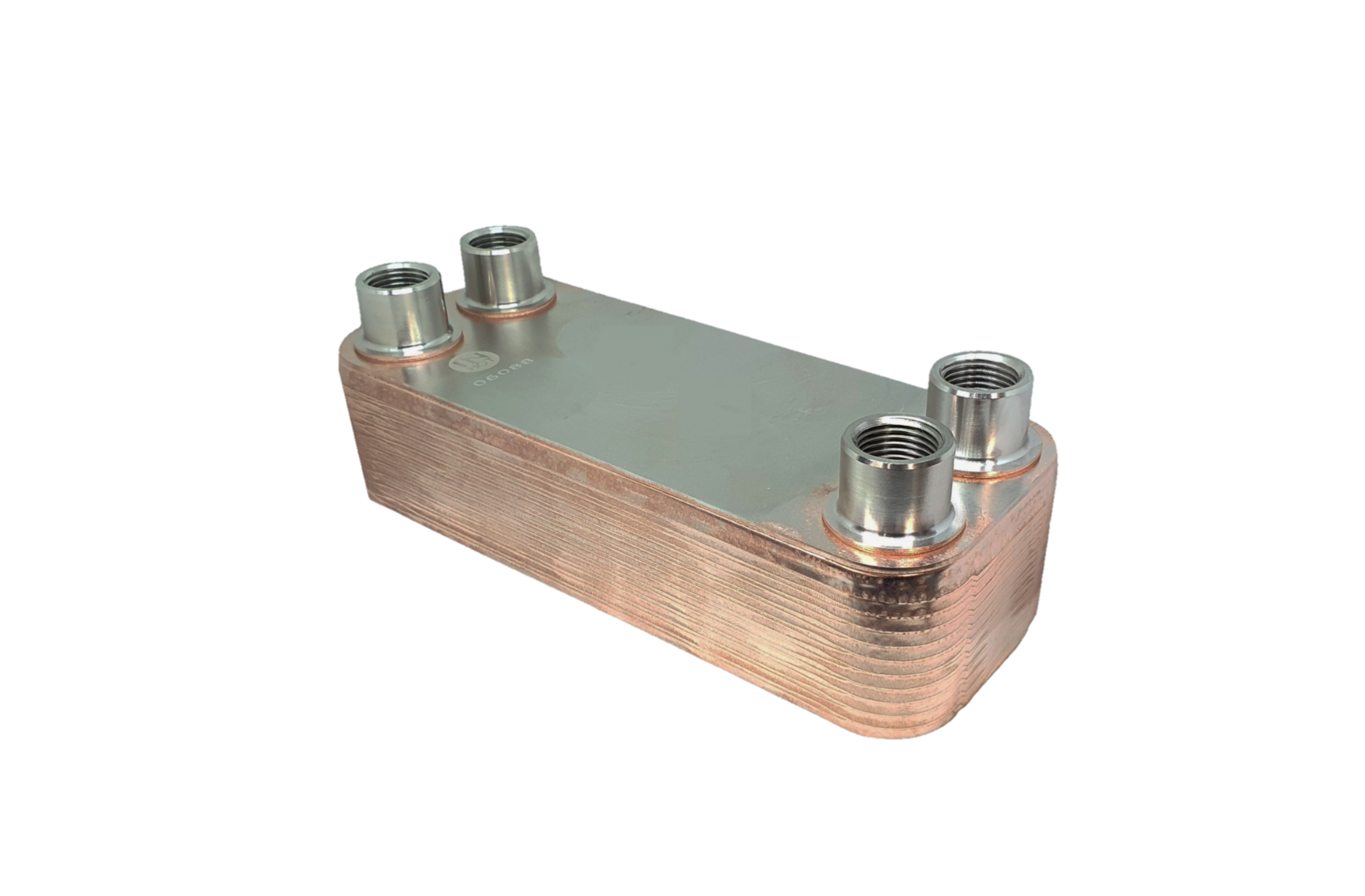

Vedeliku soojusvaheti (passiivne) FR007

Soojusvaheti (passiivne) on sobilik kõigile järgmistele vedeliksoojenditele:


Maksimaalne lubatud rõhk PS bar: 31

Maksimaalne lubatud temperatuur TS °C: 220

Minimaalne lubatud temperatuur TS °C: -196

Sisemine diameeter: Ø 1.27 cm (1/2 tolli)

Lisainformatsioon

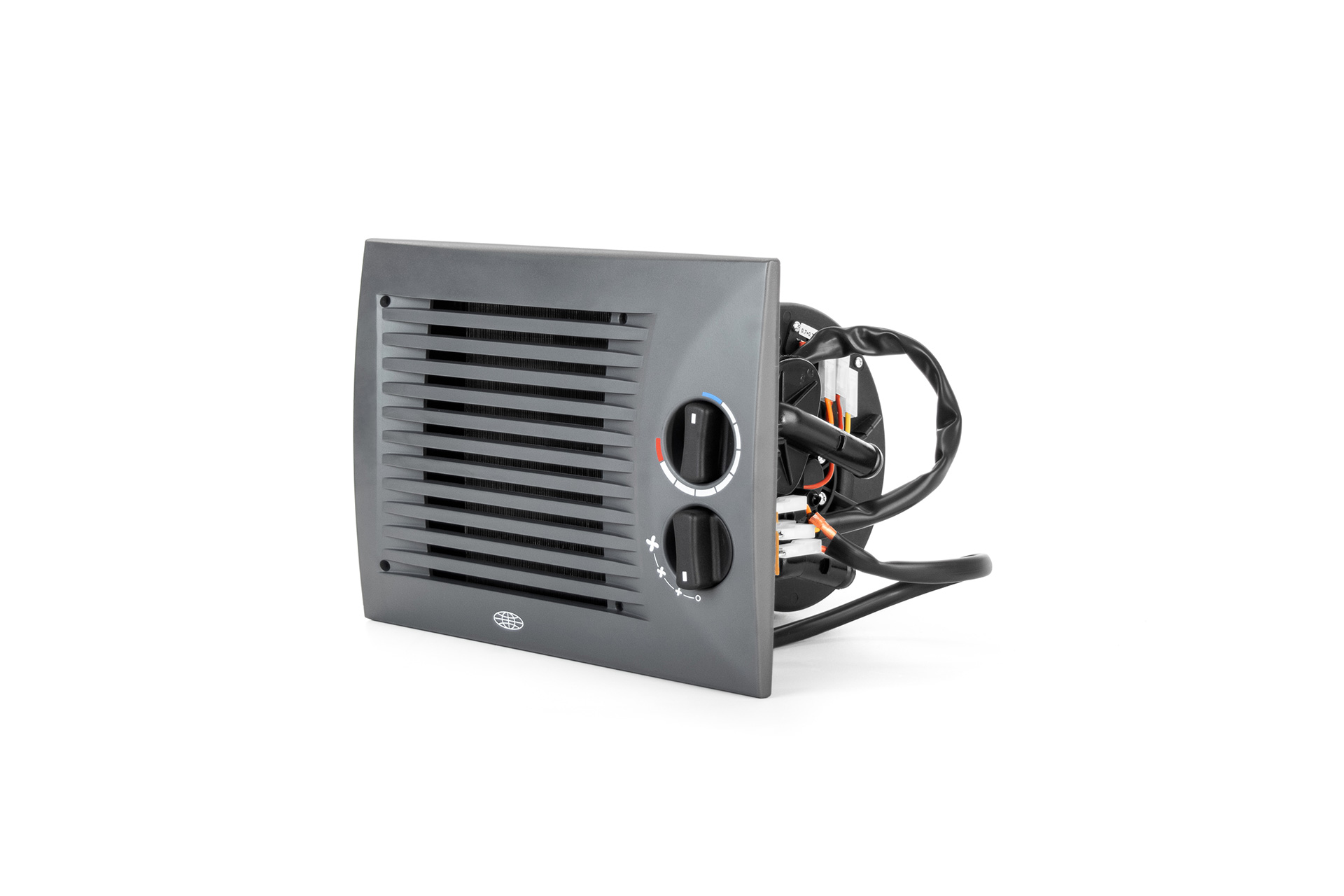

ARIZONA 600 - Soojusvaheti 3-kiiruselise elektriventilaatoriga FR012

Tööpinge: 12V

Nominaalne õhuvool: 347 m3/h

Soojuvahetil on 3-kiiruseline ventilaator.

Soojusvaheti esipaneel on kuumakindel ja eemaldatav.

Soojusvaheti torude diameeter: ø16 mm

Maksimaalne lubatud sisetemperatuur °C: 100

AUTOTERM Flow seeria vedeliksoojendite maksimaalne sisetemperatuur °C: 88

Elektriventilaatoriga soojusvaheti on sobilik kõigile järgmistele vedeliksoojenditele:


Lisainformatsioon

TENERE PERFORMA G - Soojusvaheti 3-kiiruselise elektriventilaatoriga FR013

Tööpinge: 12V

Nominaalne õhuvool: 220 m3/h

Soojuvahetil on 3-kiiruseline ventilaator.

Soojusvaheti on varustatud 3 reguleeritava õhusuunajaga.

Soojusvaheti sisse- ja väljalasketorude diameeter: ø16 mm

Maksimaalne lubatud sisetemperatuur °C: 100

AUTOTERM Flow seeria vedeliksoojendite maksimaalne sisetemperatuur °C: 88


Elektriventilaatoriga soojusvaheti on sobilik kõigile järgmistele vedeliksoojenditele:

Lisainformatsioon

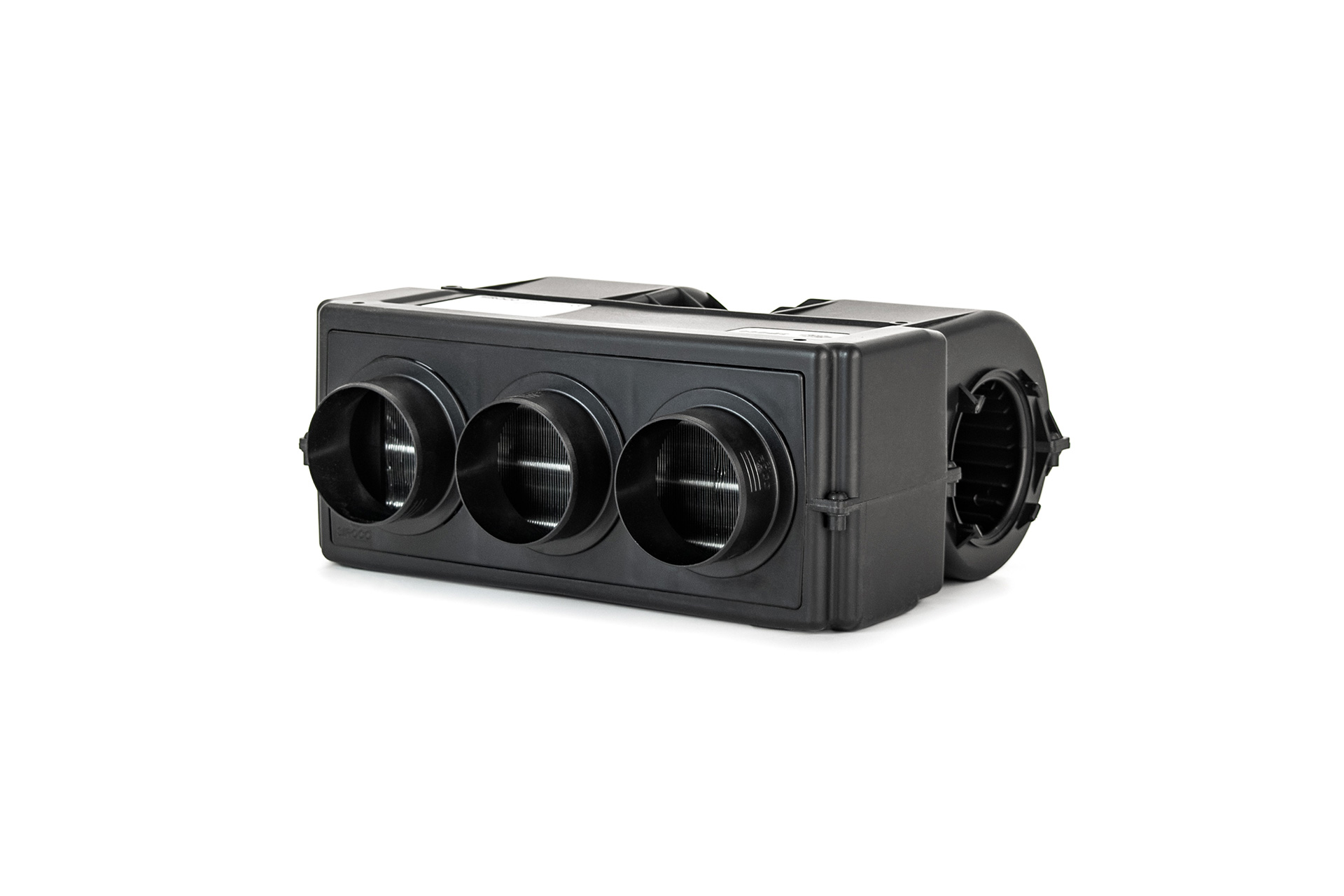

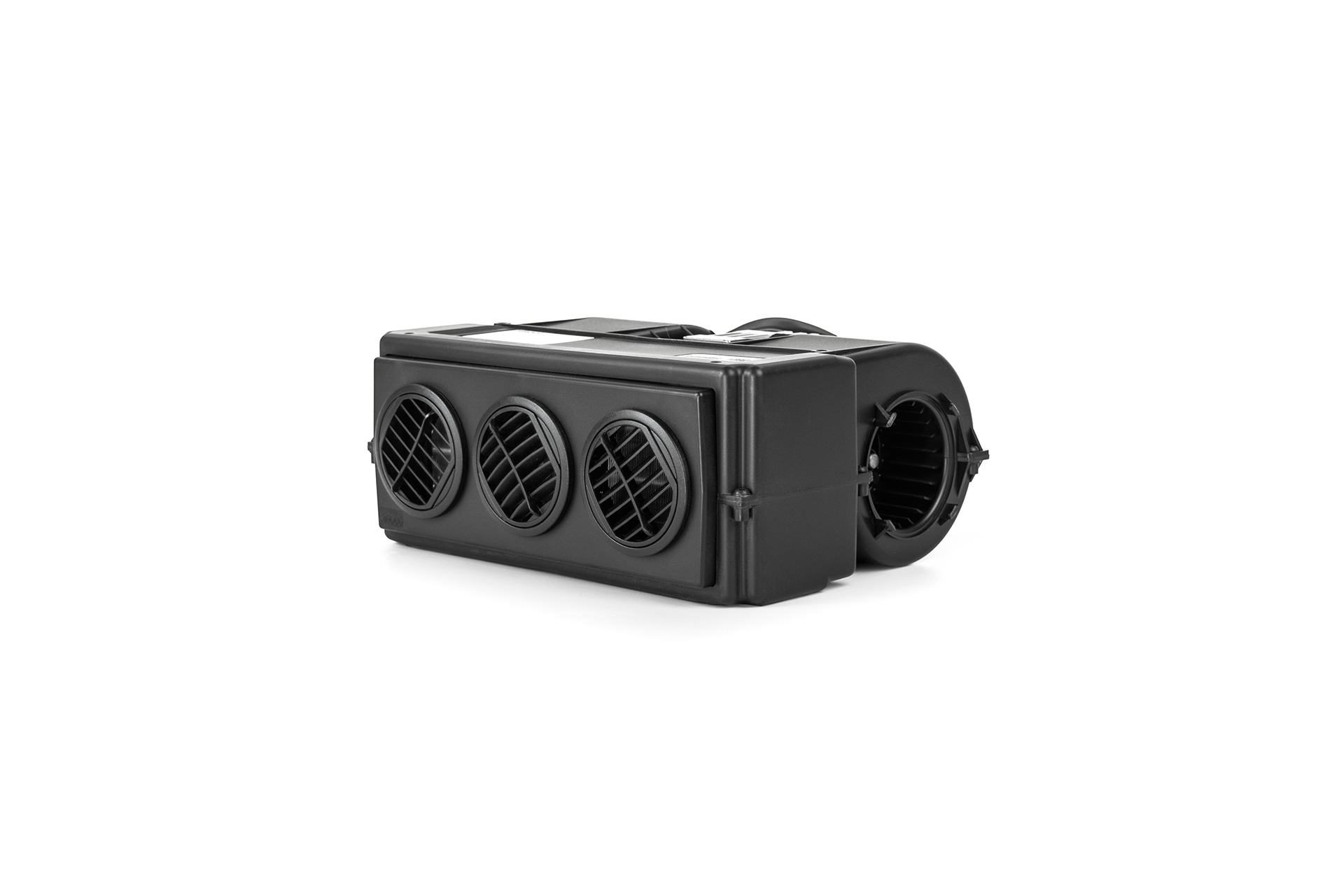

TENERE PERFORMA 3D60 - Soojusvaheti 2-kiiruselise elektriventilaatoriga FR014

Tööpinge: 12V

Nominaalne õhuvool: 314 m3/h

Soojusvahetil on 2-kiiruseline elektriventilaator

3 x ø60 mm väljuva sooja õhu kanalid

Sisse- ja väljaviigutorude läbimõõt: ø16 mm

Maksimaalne lubatud sisemine temperatuur °C: 100

Maksimaalne saavutatav sisemine temperatuur AUTOTERM Flow seeria vedeliksoojenditega °C: 88


Soojusvaheti 2-kiiruselise elektriventilaatoriga sobib järgmistele vedeliksoojenditele:

Lisainformatsioon

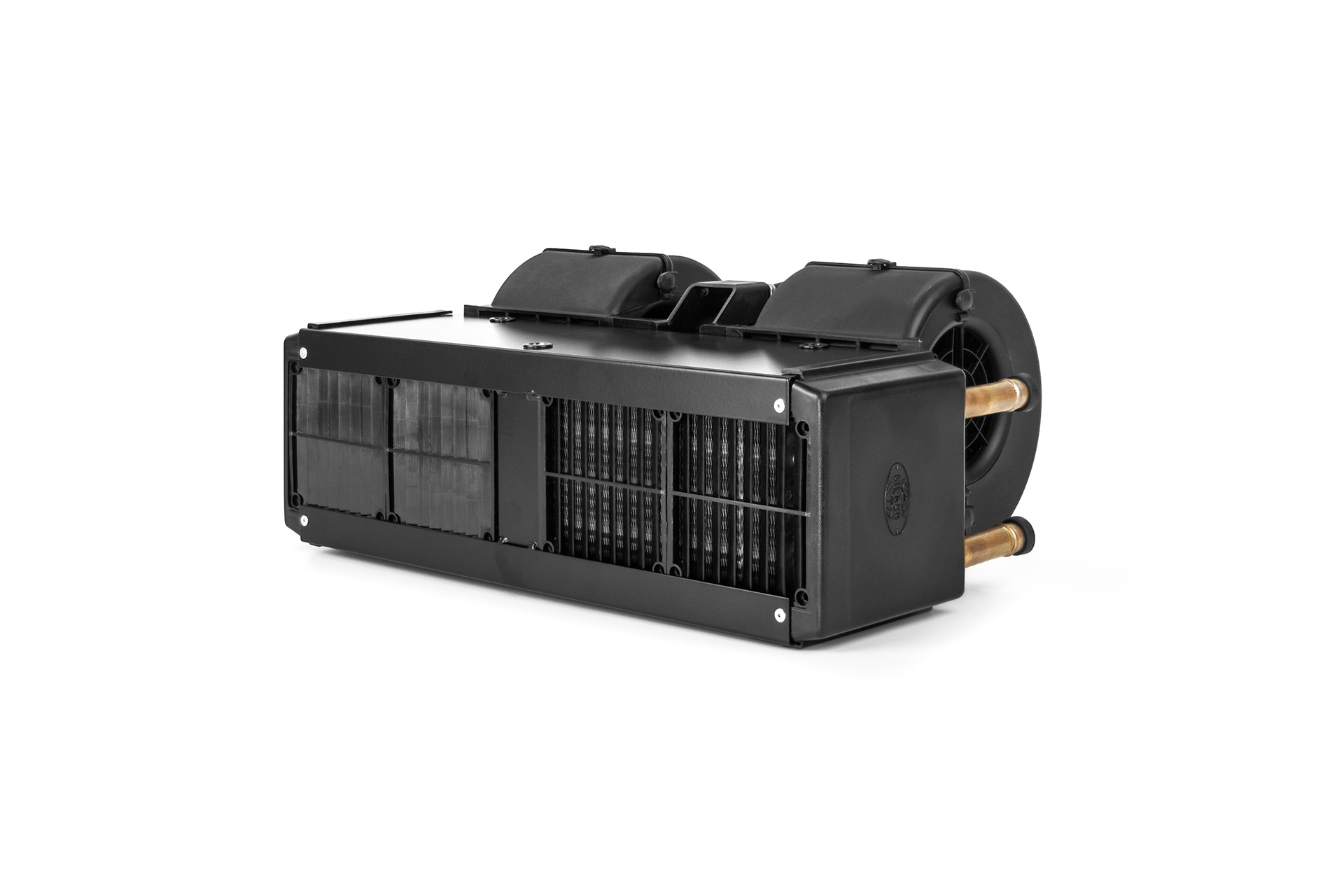

MINOX 12 C - Soojusvaheti 3-kiiruselise elektriventilaatoriga FR015

Tööpinge: 12V

Nominaalne õhuvool: 700 m3/h

Soojuvahetil on 3-kiiruseline elektriventilaator

Sisse- ja väljalasketorude diameeter (etüleenglükool): ø16 mm

Soojusvaheti maksimaalne sisemine lubatud temperatuur t °C: 100

Maksimaalne saavutatav sisemine temperatuur AUTOTERM Flow seeria vedeliksoojendiga °C: 88


Elektriventilaatoriga soojusvaheti on sobilik kõigile järgnevatele vedeliksoojenditele:

Lisainformatsioon

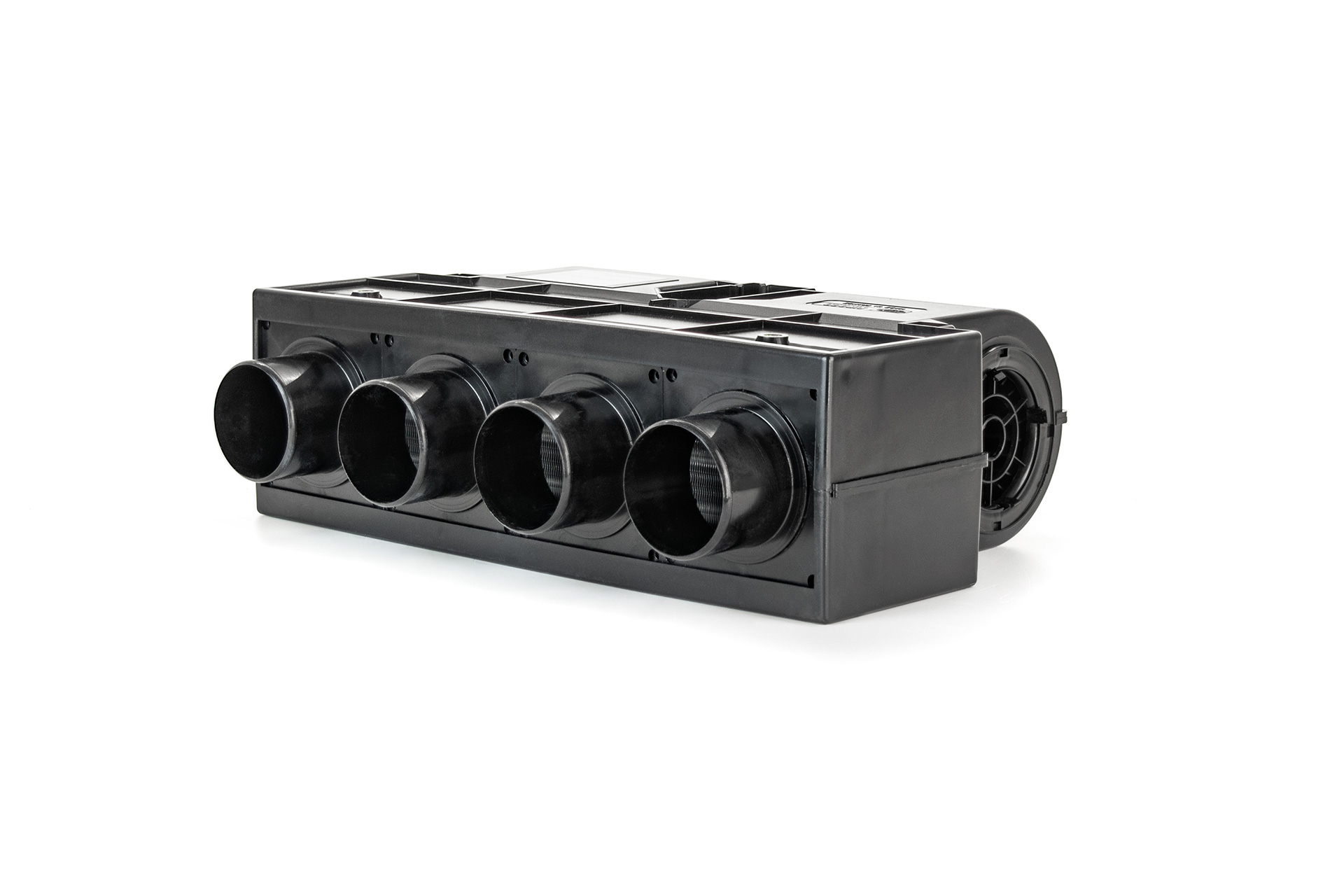

SAHARA D60 - Soojusvaheti 3-kiiruselise elektriventilaatoriga FR016

Tööpinge: 12V

Nominaalne õhuvool: 350 m3/h

Soojuvahetil on 3-kiiruseline elektriventilaator

4 x ø60 mm sooja õhu õhujagajad

Sisse- ja väljalasketorude diameeter (etüleenglükool): ø16 mm

Soojusvaheti maksimaalne sisemine lubatud temperatuur t °C: 100

Maksimaalne saavutatav sisemine temperatuur AUTOTERM Flow seeria vedeliksoojendiga °C: 88

Elektriventilaatoriga soojusvaheti on sobilik kõigile järgnevatele vedeliksoojenditele:

Lisainformatsioon

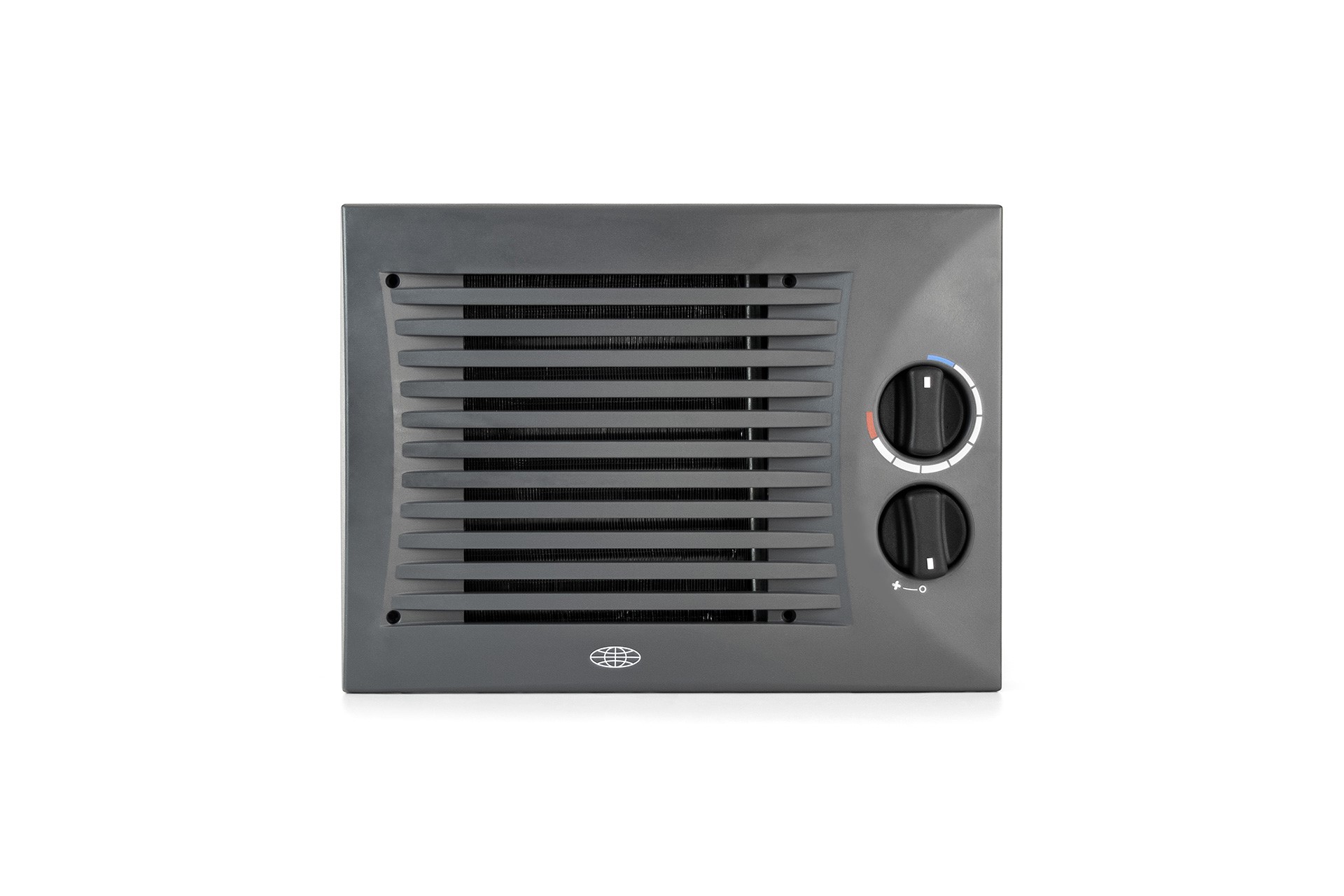

ARIZONA LN - Water heat exchanger with fan FR026

Voltage: 12V

Low noise fan

Nominal air flow: 110 m3/h

This heat exchanger has a 1-speed fan

Heating capacity, Ethylene glycol: 2.75 kW

Inlet & outlet for ethylene glycol: ø16 mm

Front panel of water heat exchanger is heat resistant & removable

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


* 2-pin connector kit FR052 available separately - not included in kit


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

*Pictures shown are for illustration purposes only. Actual product may vary in colour.

Lisainformatsioon

ARIZONA LN - Water heat exchanger with fan FR037

Voltage: 24V

Low noise fan

Nominal air flow: 110 m3/h

This heat exchanger has a 1-speed fan

Heating capacity, Ethylene glycol: 2.75 kW

Inlet & outlet for ethylene glycol: ø16 mm

Front panel of water heat exchanger is heat resistant & removable

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


* 2-pin connector kit FR052 available separately - not included in kit


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

Lisainformatsioon

Convector without fan FR041

Convector without fan, assy.FR041

This passive convector is suitable with all the following liquid heaters:


Heating capacity: 1.2 kW

Inlet & outlet for ethylene glycol: ø16 mm

Length: 1 meter

Weight: 3.35 kg

Manufacturer: Veldo Teknoloji

Lisainformatsioon

Convector with fan FR042

Convector with fan, assy.FR042

This convector with the fan is suitable with all the following liquid heaters:


Voltage: 12V

Current consumption: 0.3 A

Air Flow: 60 m3/h

Heating capacity: 1.4 kW

Inlet & outlet for ethylene glycol: ø16 mm

Length: 1 meter

Weight: 3.55 kg

Manufacturer: Veldo Teknoloji

Lisainformatsioon

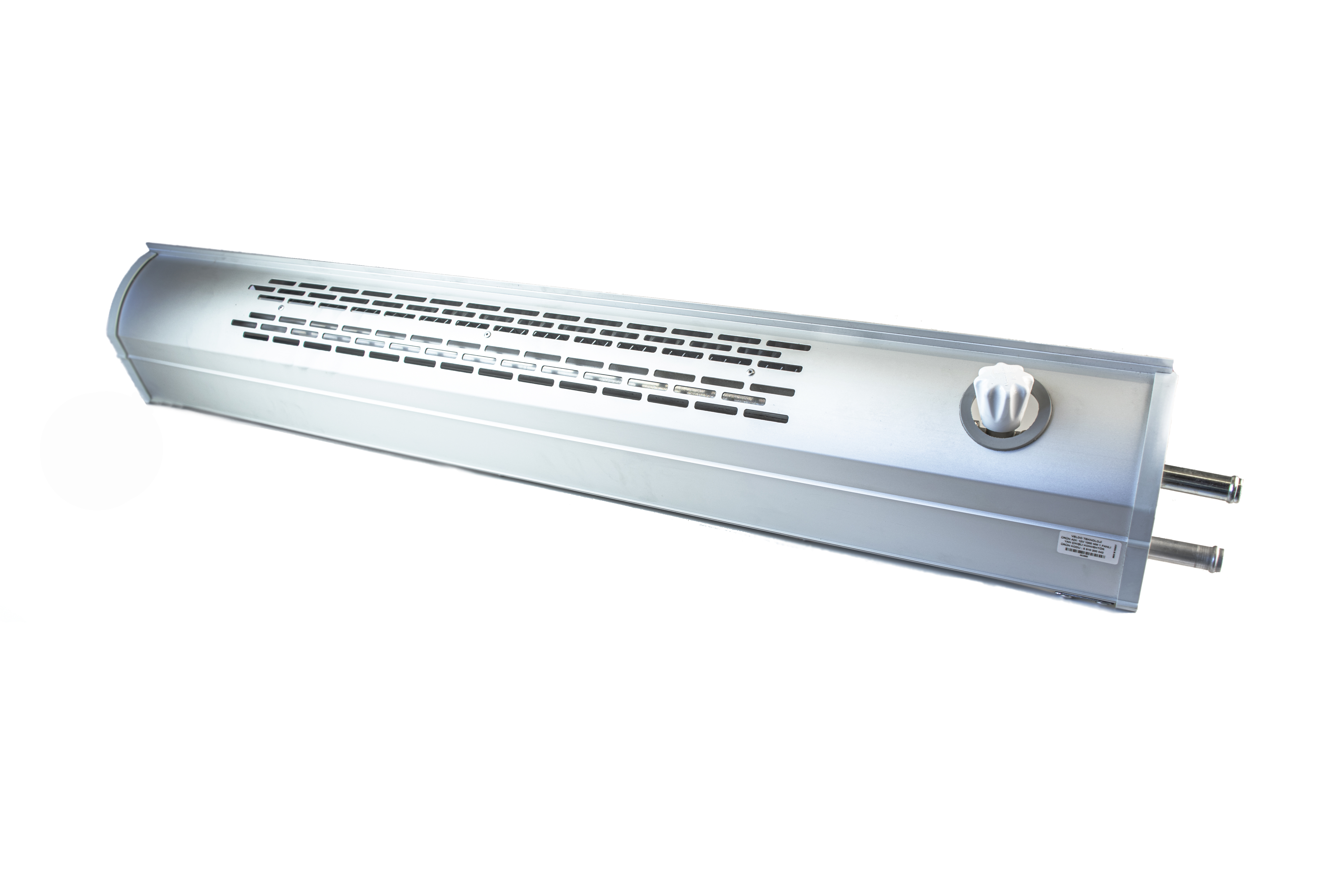

Convector without fan FR043

Convector without fan, assy.FR043

This passive convector is suitable with all the following liquid heaters:


Heating capacity: 1.3 kW

Inlet & outlet for ethylene glycol: ø16 mm

Length: 1.5 meter

Weight: 5.15 kg

Manufacturer: Veldo Teknoloji

Lisainformatsioon

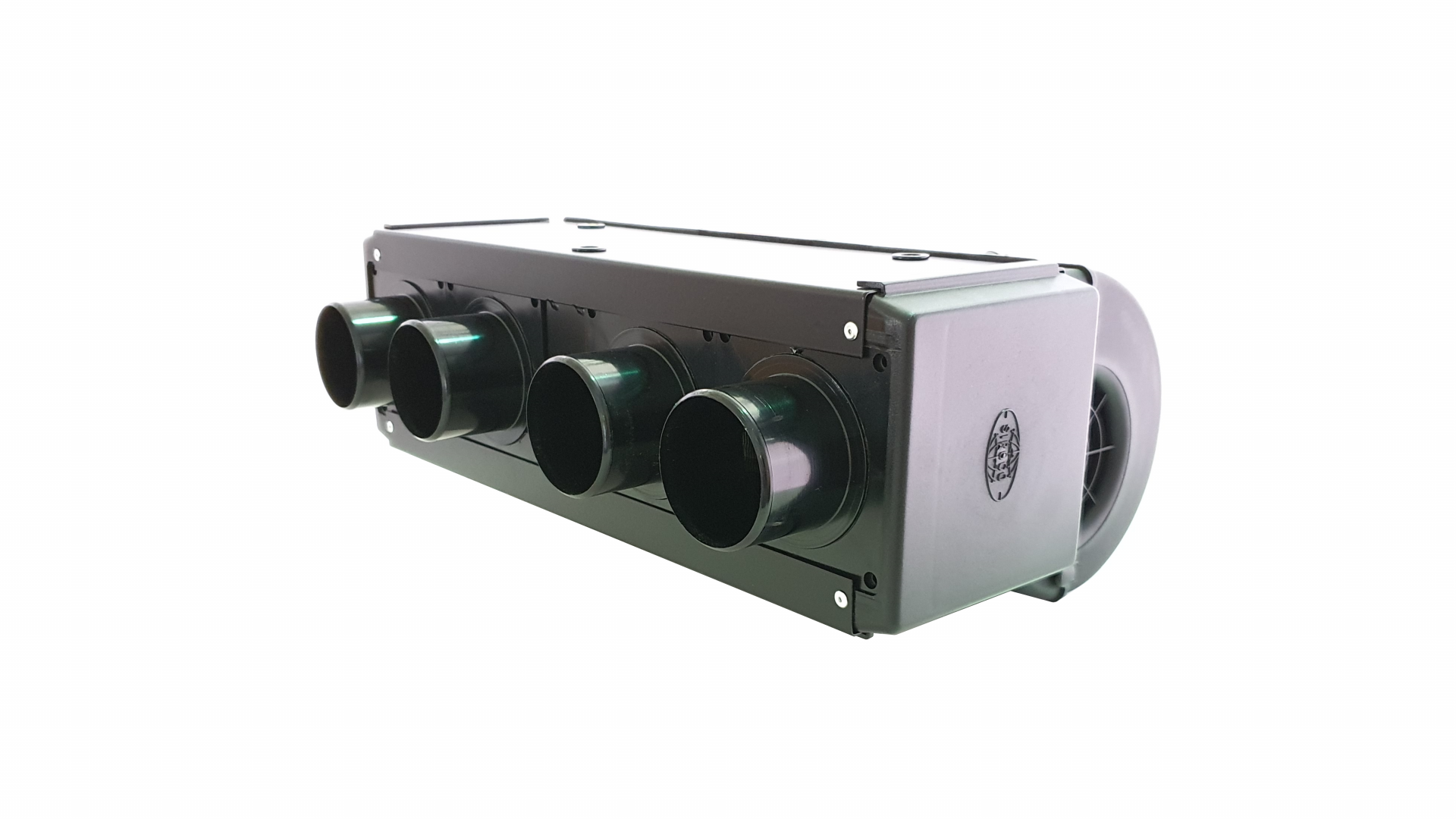

MINOX 12 D - Water heat exchanger with fan FR017

Voltage: 12V

Nominal air flow: 700 m3/h

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 11.9 kW

4 x ø60 mm air sleeves for even hot air distribution

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


For fan speed control optional 4 position rotary switch FR018 is required.

* 4-pin connector kit FR051 available separately - not included in kit


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

Lisainformatsioon

ARIZONA 600 - Water heat exchanger with fan FR038

Voltage: 24V

Nominal air flow: 347 m3/h

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 5.9 kW

Inlet & outlet for ethylene glycol: ø16 mm

Front panel of water heat exchanger is heat resistant & removable

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


* 2-pin connector kit FR052 available separately - not included in kit


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

Lisainformatsioon

TENERE PERFORMA 3D60 - Water heat exchanger with fan FR039

Voltage: 24V

Nominal air flow: 314 m3/h

This heat exchanger has a 2-speed fan

Heating capacity, Ethylene glycol: 6.05 kW

3 x ø60 mm air sleeves for even hot air distribution

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


For fan speed control optional 3 position rotary switch FR057 is required.

* 3-pin connector kit FR053 available separately - not included in kit


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

Lisainformatsioon

SAHARA D60 - Water heat exchanger with fan FR040

Voltage: 24V

Nominal air flow: 350 m3/h

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 6.4 kW

4 x ø60 mm air sleeves for even hot air distribution

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


For fan speed control optional 4 position rotary switch FR018 is required.


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

Lisainformatsioon

Convector with fan FR044

Convector with fan, assy.FR044

This convector with the fan is suitable with all the following liquid heaters:


Voltage: 12V

Current consumption: 0.3 A

Air Flow: 60 m3/h

Heating capacity: 1.6 kW

Inlet & outlet for ethylene glycol: ø16 mm

Length: 1 meter

Weight: 3.55 kg

Manufacturer: Veldo Teknoloji

Lisainformatsioon

ARIZONA 4DS - Water heat exchanger with fan FR047

Voltage: 24V

Nominal air flow: 303 m3/h

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 5.35 kW

4 x ø60 mm air sleeves for even hot air distribution

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


For fan speed control optional 4 position rotary switch FR018 is required.

* 4-pin connector kit FR051 available separately - not included in kit


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

Lisainformatsioon

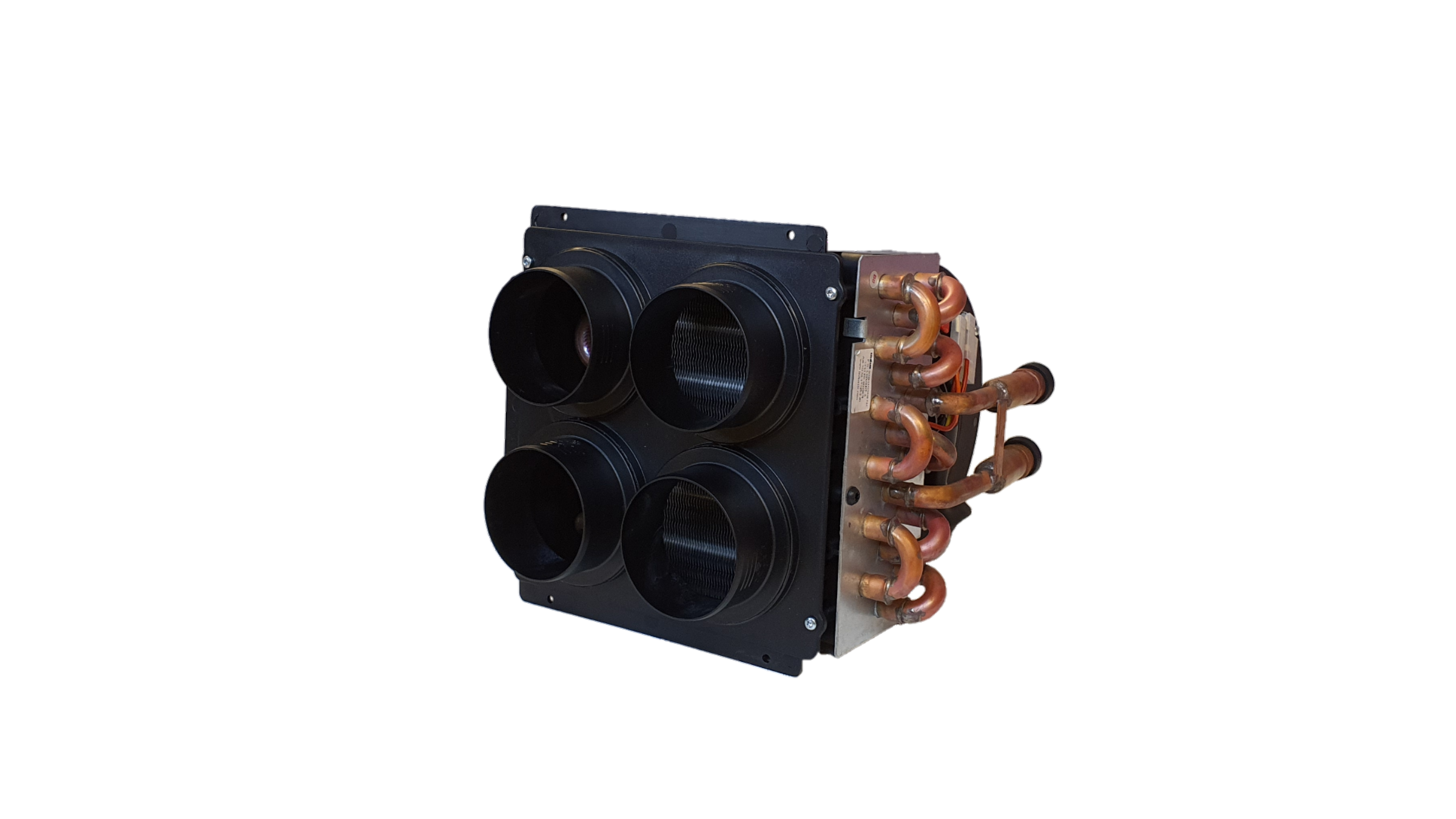

ARIZONA 4DS - Water heat exchanger with fan FR048

Voltage: 12V

Nominal air flow: 303 m3/h

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 5.35 kW

4 x ø60 mm air sleeves for even hot air distribution

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


For fan speed control optional 4 position rotary switch FR018 is required.

* 4-pin connector kit FR051 available separately - not included in kit


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

Lisainformatsioon

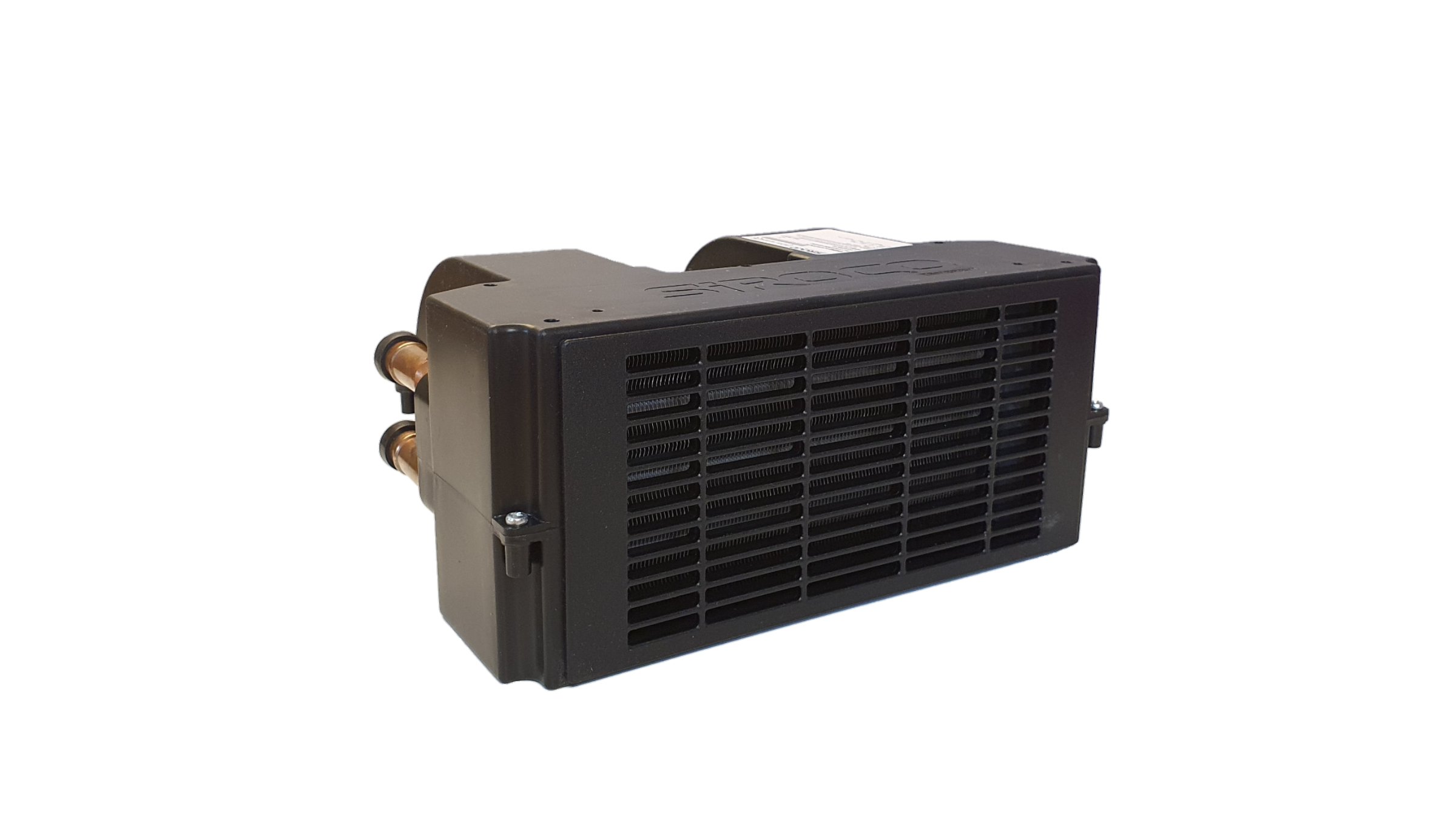

TENERE II C - Water heat exchanger with fan FR049

Voltage: 12V

Nominal air flow: 250 m3/h

This heat exchanger has a 2-speed fan

Heating capacity, Ethylene glycol: 3.14 kW

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


For fan speed control optional 3 position rotary switch FR057 is required.


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

Lisainformatsioon

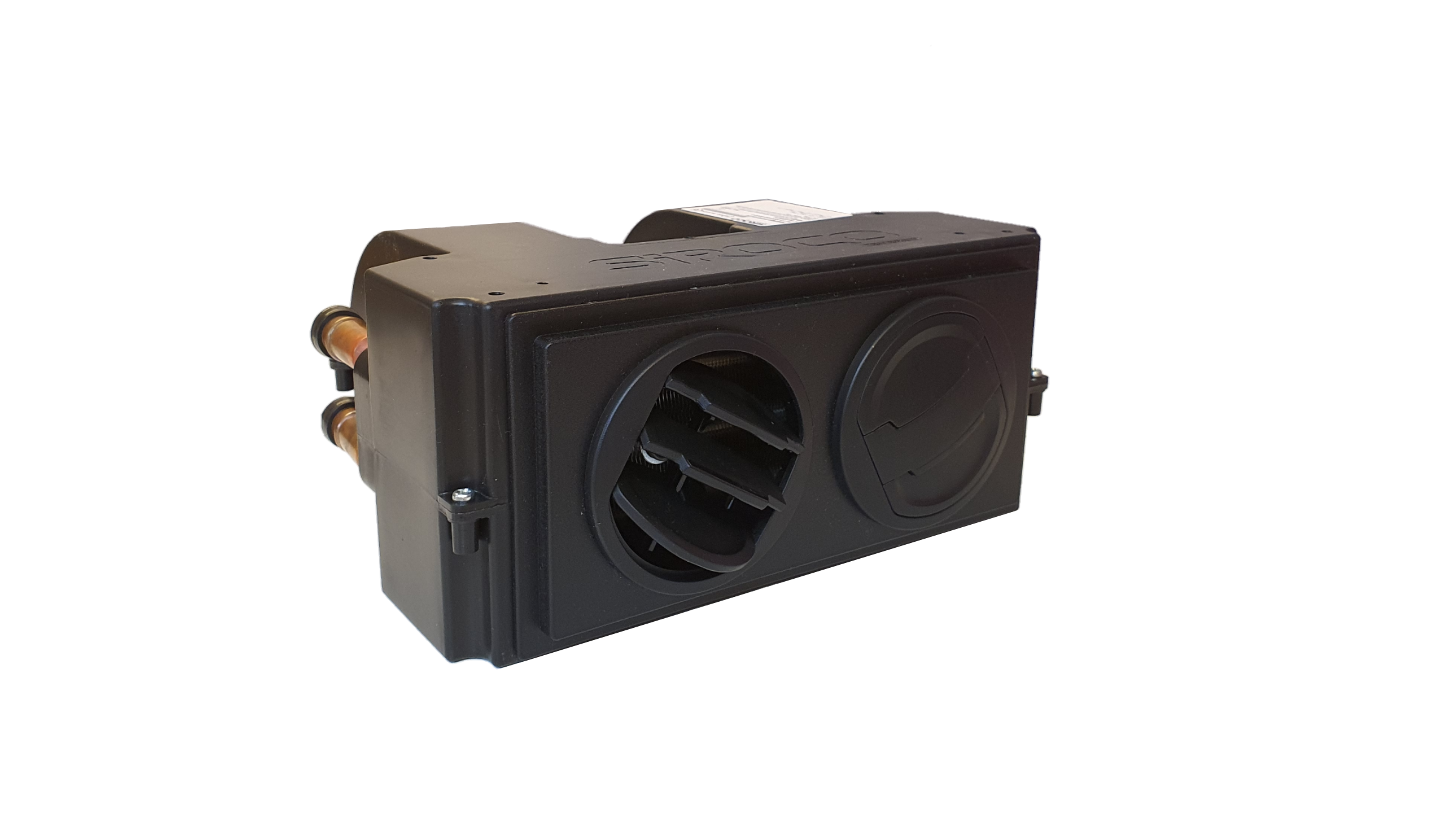

TENERE II F - Water heat exchanger with fan FR050

Voltage: 12V

Nominal air flow: 236 m3/h

This heat exchanger has a 2-speed fan

Heating capacity, Ethylene glycol: 3.05 kW

Equipped with 2 adjustable air diffusers with 3 closable flaps

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


Power supply connector not included.


For fan speed control optional 3 position rotary switch FR057 is required.


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

Lisainformatsioon

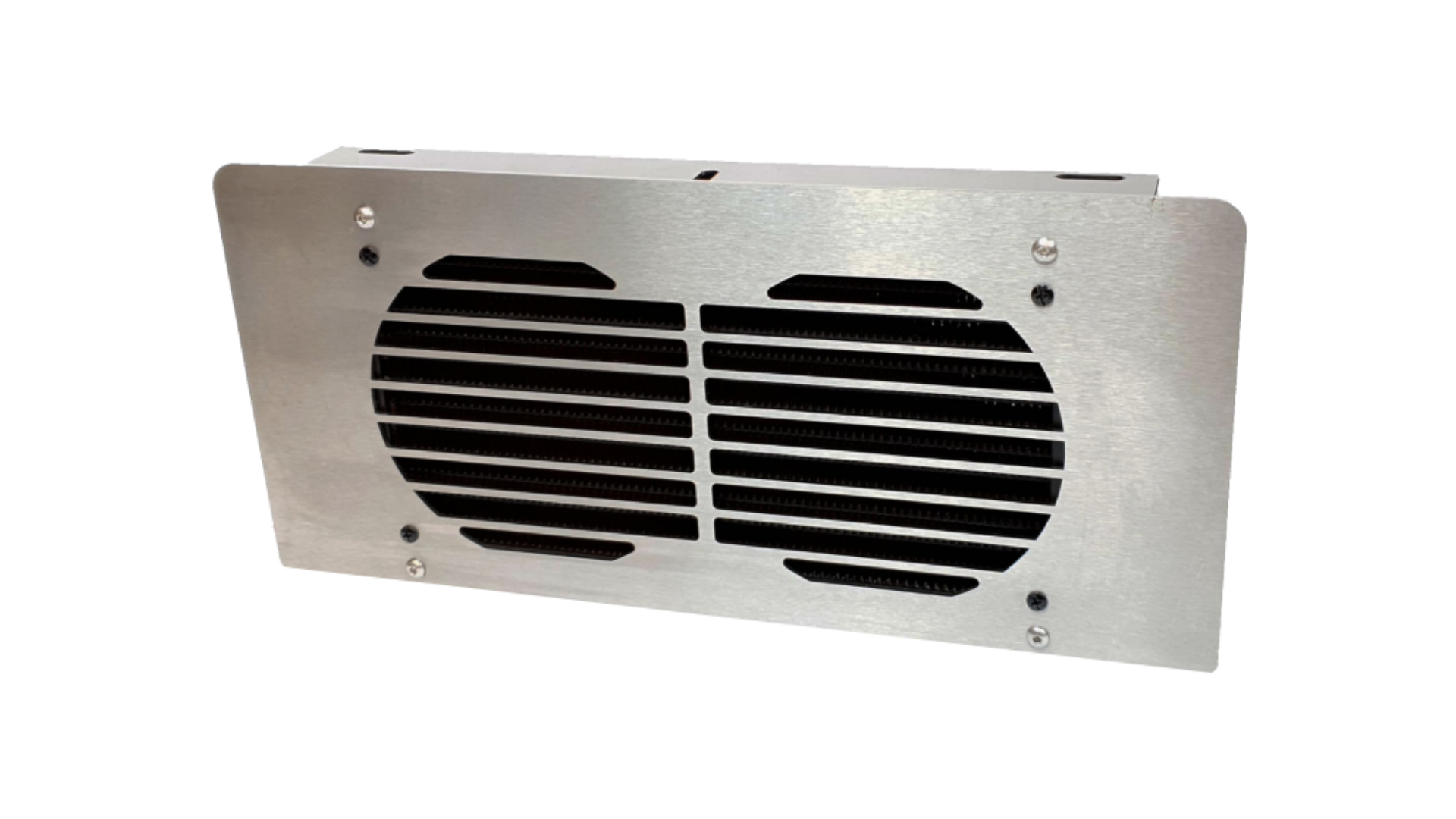

AUTOTERM CHX küttemaatriks FR058

AUTOTERM CHX küttemaatriks on mõeldud ruumide kütmiseks.

Sellel küttemaatriksil on 2 sisemist ventilaatorit koos radiaatoriga. Igat ventilaatorit saab vajadusel juhtida individuaalselt või kahte korraga koos ventilaatori kiiruse regulaatoriga.

Küttevõimsusega 1,4 kW ja kuuma õhu voolukiirusega 140 m3/h. AUTOTERM CHX sobib suurepäraselt haagissuvilatesse, matkautodesse ja paatidesse.

AUTOTERM CHX sobib suurepäraselt koos kõigi AUTOTERM Flow seeria vedelsoojenditega.

Madala mürataseme ja madala energiatarbega ventilaatoritega, lisab see teie sõidukile suurepärast lisamugavust.


AUTOTERM CHX juhtimine:

AUTOTERM FC9 - ventilaatori kiiruse regulaator
AUTOTERM CHM36 - ventilaatori termokontroller
(mõlemat regulaatorit saab kasutada AUTOTERM CHX küttemaatriksi juhtimiseks)

Lisainformatsioon

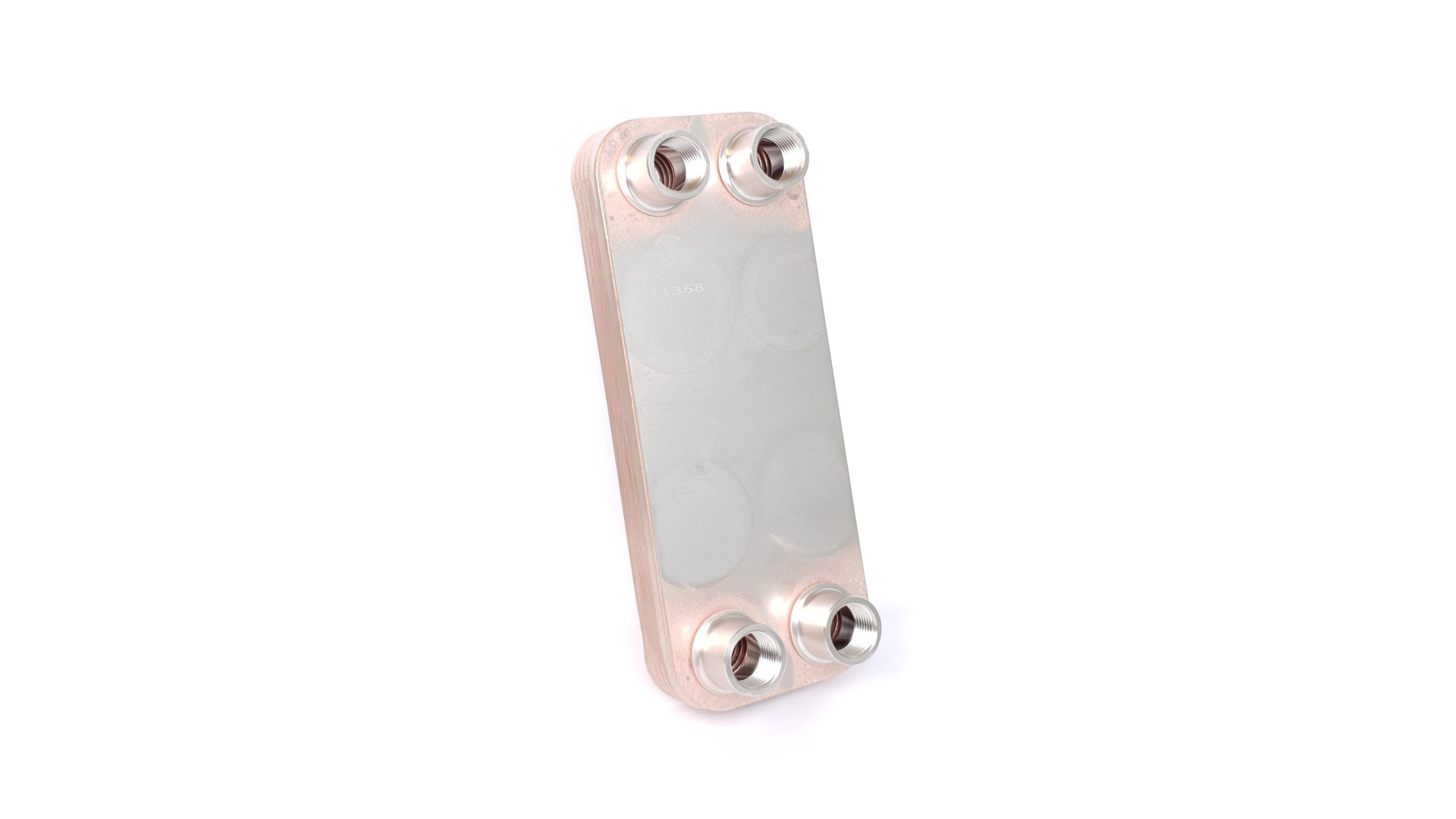

EKO AIR Passive water heat exchanger FR064

This passive water heat exchanger is suitable for all the following liquid heaters:


Heating capacity: 5-8 kW

Maximum allowable pressure PS bar: 31

Maximum allowable temperature TS °C: 200

Minimum allowable temperature TS °C: -200

Inner diameter: Ø 1.27 cm (1/2 in)


Manufacturer: Eko Air


Dimensions:

227 x 90 x 46 mm

Lisainformatsioon
